IDEAL 6655 Programmable Electric Guillotine (650mm Cut)

IDEAL 6655 Programmable Electric Guillotine (650mm Cut)

Contact us for price

orCall 01945 475151 / 07876 201288

Description

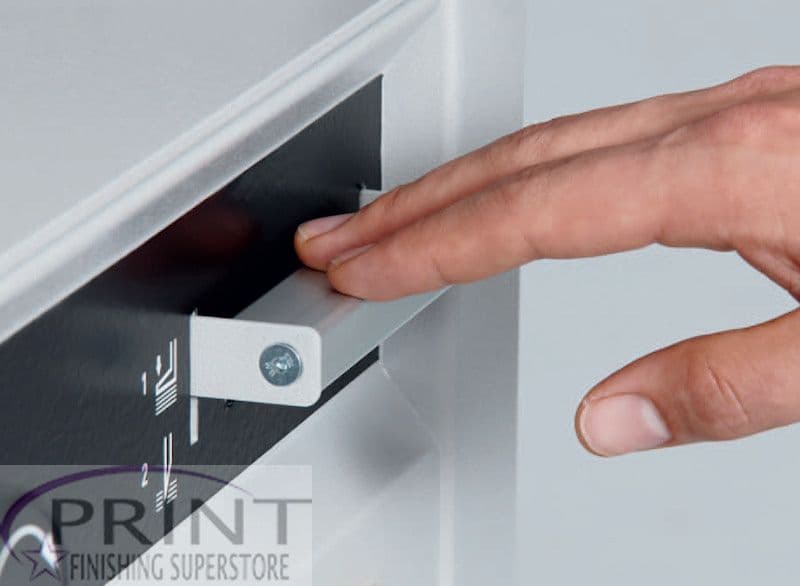

  • Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.
  • The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation.
  • Table Depth: 610mm.
  • Pre-programmed measurements for A3 to A6 standard paper sizes.Cutting Length: Up To 650mm.
  • Cutting Height: Up To 80mm (more than a ream of paper).
  • Narrow Cut: 25mm.
  • Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers.
  • hinged, electronically controlled safety guard on the front table;
  • safety cover on the rear table;
  • main switch and safety lock with key;
  • electronically controlled true two-hand operation;
  • 24 volt controls (low voltage);
  • patented safety drive;
  • automatic blade and clamp return from every position;
  • disc brake for instant blade stop;
  • blade changing device with covered cutting edge;
  • blade depth adjustment from the outside of the machine;
  • easy blade and cutting stick change from the front of the machine without removing covers.
  • Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display.
  • Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch).
  • 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step).
  • Program runs automatically.
  • 10-button key pad for presetting of measurements.
  • Memory key for repeat cuts.
  • Automatic SET function for reference measurement via start button.
  • Programmable EJECT function - for pushing out the paper. Self-diagnostic system with error indication on display.
  • Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast).
  • Electro-mechanical blade and clamp drive.
  • Blade made of German high quality steel.
  • Solid steel blade carrier and adjustable blade guides.
  • Adjustable backgauge with narrow separations and plastic gliders.
  • Optical cutting line with bright and durable LEDs.
  • Two side lays each on front and rear tables.
  • Solid all-metal construction.
  • Complete with stand, storage shelf, practical tool holder and stacking angle.
  • Optional set of side tables available at an extra cost.
  • transparent safety guard
  • electronic hand wheel
  • Patented EASY-CUT activating bars
  • EASY-TO-USE Touch pad
  • Practical tool holder
  • safe blade change
  • Cutting Length: Up To 650mm.
  • Cutting Height: Up To 80mm (more than a ream of paper).
  • Narrow Cut: 25mm.
  • Power supply (other voltages available): 230 Volt / 50 Hz / 1~
  • Motor performance (input capacity): 1,42 kW
  • Dimensions:H 1293 x W 992 x D 1220 mm
  • Dimensions with side tables:H 1293 x W 1565 x D 1220 mm
  • Weight: 302kg
  • Weight with side tables: 311kg

At Elmstok Ltd, we can deliver within 1-3 working days within UK Mainland from date of order and payment being received, for in-stock items. If you require installation and training then we can provide one of our experienced engineers to do this for you at an extra cost. For all UK sales, items are either shipped out using DPD or DHL courier (up to 30kgs) and securely boxed and packaged. For larger items, we use a local haulage company. These items are fully secured to wooden pallets and covered with shrink wrap film to help protect them during transport. Pallet shipments are normally sent on a 1-2 day delivery service within UK Mainland. For all exported products (i.e. outside the UK), we securely package them as above, and arrange collection from one of our many shipping agents. These are distributed to you by either Air, Road or Sea (depending on location). We can accept UK payment either via our online card checkout system, bank transfer, Paypal, or cash on collection. For all export orders, we would require payment via wire-bank transfer only. We can email over an invoice along with our full bank details.

Our advertised prices include UK Mainland delivery only. For Non-UK Mainland shipments, please enquire/contact us with your full shipping details so that we can confirm delivery costs to your destination. We can then provide you with a pro-forma invoice, for wire-bank transfer payment.

Specifications

ManufacturerIDEAL
ConditionNew
Table depth610mm.
Pre-programmed measurements for a3 to a6 standard paper sizes.cutting lengthUp To 650mm.
Cutting heightUp To 80mm (more than a ream of paper).
Narrow cut25mm.
Comprehensive scs safety packagehinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers.
Cutting lengthUp To 650mm.
Power supply (other voltages available)230 Volt / 50 Hz / 1~
Motor performance (input capacity)1,42 kW
DimensionsH 1293 x W 992 x D 1220 mm
Dimensions with side tablesH 1293 x W 1565 x D 1220 mm
Weight302kg
Weight with side tables311kg
