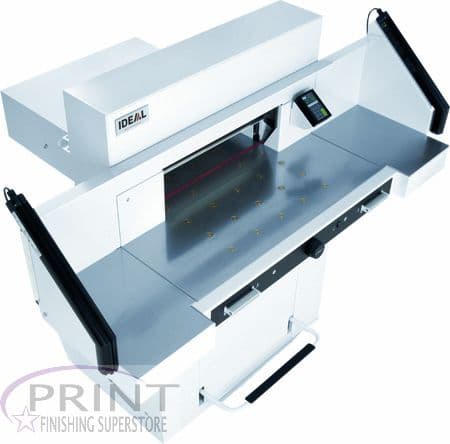

IDEAL 5560LT Programmable Guillotine With Air Table

IDEAL 5560LT Programmable Guillotine With Air Table

Contact us for price

orCall 01945 475151 / 07876 201288

Description

The IDEAL 5560LT employs the latest technology to provide a fully configured commercial print guillotine for the B3 and digital print market. The guillotine includes a hydraulic clamp drive to enable fine control over the holding of the stack to be cut without damaging the print work. An Air Table for quick and smooth movement of your paper stocks around the cutting area. A foot pedal provides preclamping and the cutting line indicator to ensure that cutting takes place where required. It adds up to a highly versatile machine able to cope with a wide range of print work and material types. Why buy? For business owners The IDEAL 5560LT is a highly flexible guillotine able to take on all types of work thanks to hydraulic clamping system and Air Table more normally associated with larger guillotines. Productivity is enhanced through programming of up to 99 jobs; Eject function to push paper forwards; side tables to hold the stack before and after cutting. Diagnostic display shows error messages to help pinpoint faults that need attention. Why buy? For operators The hydraulic clamp system on the IDEAL 5560LT provides absolute control over the stack position during cutting. The Air Bed makes digitally printed media float around the cut area with ease. The optical cutting indicator ensures that the blade will fall exactly where required. Side lays at front and rear of the table help position the stack precisely. Back gauge movement is automatic, aided by a manual control for precise positioning. The programmable controls set the cut position to 0.1mm accuracy. Highlights Typical Applications

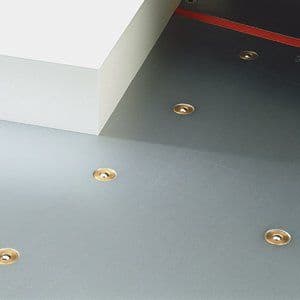

  • Hydraulic clamps with infinitely adjustable pressure and Air Bed for Swift Paper Positioning

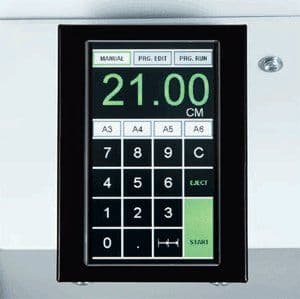

  • 99 job programmable control, accurate to 0.1mm
  • Cutting Length: Up To 550mm.
  • Cutting Height: Up To 95mm / 92mm*.
  • Narrow Cut: 32mm / 60mm*
  • Table Depth: 570mm.
  • Memory key for repeat jobs
  • Power back gauge
  • Independent clamp movement
  • Digital read out of cut measurements
  • 550mm maximum cut length, 32mm minimum
  • 95mm cutting height
  • Infra Red beam safety curtain
  • Side tables for ease of loading/unloading
  • Business cards
  • Stationery
  • Leaflets
  • Flyers
  • Labels
  • Posters
  • Delicate papers
  • Cutting sheets of paper to required print size
  • Finishing books up to 95mm deep
At Elmstok Ltd, we can deliver within 1-3 working days within UK Mainland from date of order and payment being received, for in-stock items. If you require installation and training then we can provide one of our experienced engineers to do this for you at an extra cost. For all UK sales, items are either shipped out using DPD or DHL courier (up to 30kgs) and securely boxed and packaged. For larger items, we use a local haulage company. These items are fully secured to wooden pallets and covered with shrink wrap film to help protect them during transport. Pallet shipments are normally sent on a 1-2 day delivery service within UK Mainland. For all exported products (i.e. outside the UK), we securely package them as above, and arrange collection from one of our many shipping agents. These are distributed to you by either Air, Road or Sea (depending on location). We can accept UK payment either via our online card checkout system, bank transfer, Paypal, or cash on collection. For all export orders, we would require payment via wire-bank transfer only. We can email over an invoice along with our full bank details.

Our advertised prices include UK Mainland delivery only. For Non-UK Mainland shipments, please enquire/contact us with your full shipping details so that we can confirm delivery costs to your destination. We can then provide you with a pro-forma invoice, for wire-bank transfer payment.

Specifications

ManufacturerIDEAL
ConditionNew
Stock Number4019364365119
Cutting lengthUp To 550mm.
Cutting heightUp To 95mm / 92mm*.
Narrow cut32mm / 60mm*
Table depth570mm.
- cutting length550 mm
- cutting height95 mm
- narrow cut32 mm
- table depth570 mm
- narrow cut with false clamp installed60 mm
- power supply (other voltages available)230 Volt / 50 Hz / 1~
- motor performance (input capacity)1,5 kW
- dimensionsH 1260 x W 1560 x D 1067 mm
- dimensions with side tablesH 1260 x W 1630 x D 1067 mm
- weight369 kg
- weight with side tables386 kg
