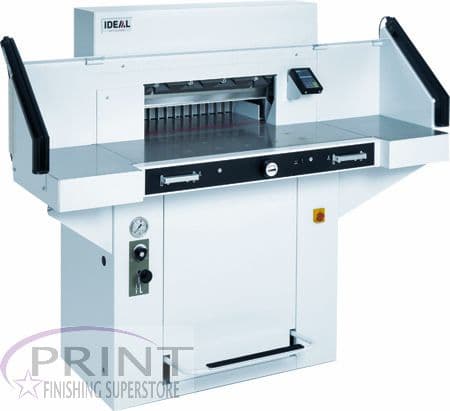

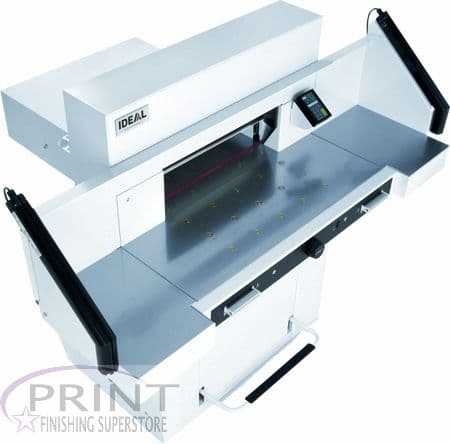

IDEAL 5560 Programmable Electric Guillotine (550mm cut)

IDEAL 5560 Programmable Electric Guillotine (550mm cut)

Contact us for price

orCall +441945 475151

Description

  • Hydraulic blade and clamp drive.
  • Table Depth: 570mm.
  • Narrow Cut: 32mm / 60mm*
  • Cutting Height: Up To 95mm / 92mm*.
  • Cutting Length: Up To 550mm.
  • Equipped with the new, patented EASY-CUT blade activatingbars for convenient and safe cutting.
  • Comprehensive SCS safety package: safety cover on the rear table; lockable main switch; IR light beam safety curtain on the front table; electronically controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade and clamp return from every position; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers.
  • safety cover on the rear table;
  • lockable main switch;
  • IR light beam safety curtain on the front table;
  • electronically controlled true two-hand operation;
  • 24 volt controls (low voltage);
  • safety drive;
  • automatic blade and clamp return from every position;
  • blade changing device with covered cutting edge;
  • blade depth adjustment from the outside of the machine;
  • easy blade and cutting stick change from the front of the machine without removing covers.
  • Foot pedal for pre-clamping or as mechanical cutting line indicator.
  • Optical cutting line with bright and durable LEDs.
  • Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display.
  • Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch).
  • 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step).
  • Program runs automatically.
  • 10-button key pad for presetting of measurement.
  • Pre-programmed measurements for A3 to A6 standard paper sizes.
  • Memory key for repeat cuts.
  • Automatic SET function for reference measurement via start button.
  • Programmable EJECT function - for pushing out the paper.
  • Self-diagnostic system with error indication on display.
  • Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast).
  • Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge.
  • False clamp plate for delicate work.
  • Solid front table made of die-cast aluminium with stainless steel worktops.
  • Blade made of high quality HSS steel.
  • Hydraulic swing cut for high cutting precision.
  • Die-cast aluminium blade carrier and adjustable blade guides.
  • Aluminium clamp bar.
  • Adjustable blade depth.
  • Sturdy cast iron machine frame.
  • Movable on castors.
  • Complete with practical tool holder and stacking angle.
  • Optional set of side tables (left and right) available at an extra cost.
  • IR SAFETY CURTAIN
  • ELECTRONIC HAND WHEEL
  • PATENTED EASY-CUT ACTIVATING BARS

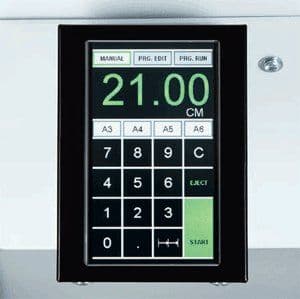

  • EASY-TO-USE TOUCH PAD

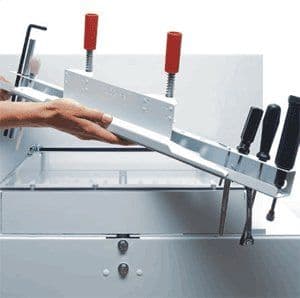

  • PRACTICAL TOOL HOLDER
  • SAFE BLADE CHANGE
  • Cutting length: 550 mm
  • Cutting height: 95 mm
  • Narrow cut: 32 mm
  • Table depth: 5700 mm
  • Narrow cut with false clamp installed: 60 mm
  • Power supply (other voltages available): 230 V / 50 Hz / 1~ (other voltages available)
  • Motor performance (input capacity): 1.5 kW
  • Dimensions: H 1370 x W 1070 x D 1400 mm
  • Dimensions with side tables:H 1370 x W 1630 x D 1400 mm
  • Weight:369 kg
  • Weight with side tables:386 kg
At Elmstok Ltd, we can deliver within 1-3 working days within UK Mainland from date of order and payment being received, for in-stock items. If you require installation and training then we can provide one of our experienced engineers to do this for you at an extra cost. For all UK sales, items are either shipped out using DPD or DHL courier (up to 30kgs) and securely boxed and packaged. For larger items, we use a local haulage company. These items are fully secured to wooden pallets and covered with shrink wrap film to help protect them during transport. Pallet shipments are normally sent on a 1-2 day delivery service within UK Mainland. For all exported products (i.e. outside the UK), we securely package them as above, and arrange collection from one of our many shipping agents. These are distributed to you by either Air, Road or Sea (depending on location). We can accept UK payment either via our online card checkout system, bank transfer, Paypal, or cash on collection. For all export orders, we would require payment via wire-bank transfer only. We can email over an invoice along with our full bank details.

Our advertised prices include UK Mainland delivery only. For Non-UK Mainland shipments, please enquire/contact us with your full shipping details so that we can confirm delivery costs to your destination. We can then provide you with a pro-forma invoice, for wire-bank transfer payment.

Specifications

ManufacturerIDEAL
ConditionNew
Stock Number4019364360114
Table depth5700 mm
Narrow cut32 mm
Cutting height95 mm
Cutting length550 mm
Comprehensive scs safety packagesafety cover on the rear table; lockable main switch; IR light beam safety curtain on the front table; electronically controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade and clamp return from every position; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers.
Narrow cut with false clamp installed60 mm
Power supply (other voltages available)230 V / 50 Hz / 1~ (other voltages available)
Motor performance (input capacity)1.5 kW
DimensionsH 1370 x W 1070 x D 1400 mm
Dimensions with side tablesH 1370 x W 1630 x D 1400 mm
Weight369 kg
Weight with side tables386 kg
