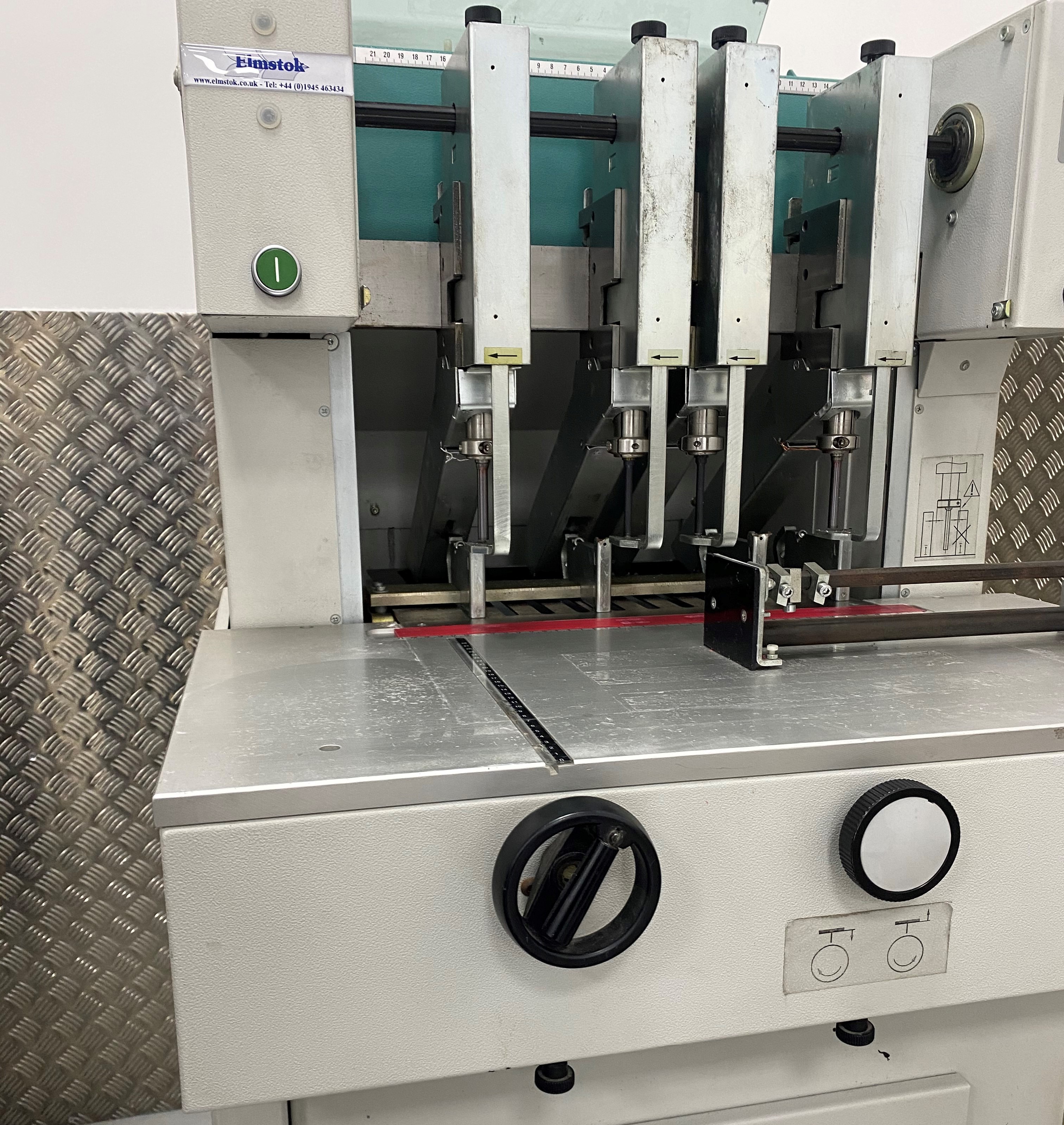

Nagel Citoborma 490 4-Head High Capacity Paper Drill

Nagel Citoborma 490 4-Head High Capacity Paper Drill

£5,490 Price shown excludes delivery. Please confirm your full delivery address so that we can confirm costs.

Available quantity: 1

orCall +44 (0)1945 463434


  • A heavy-duty, previously owned, Nagel Citoborma 490 4-Head paper-drilling machine.
  • This is in full good working order.
  • Condition is used, with some signs of general and cosmetic wear to outer casing and table but these do not affect the workings of the machine.
  • The Citoborma 490 is the ultimate solution for every drilling application (paper, cardboard, plastic, textiles, leather, etc.).
  • Can be used for drill-bit hole diameters 2mm-14mm.
  • Drill up to 60mm pile height.
  • Maximum paper width: 460mm.
  • Adjustable throat depth of up to a massive 270mm.
  • Distance between centres: 19mm-425mm.
  • 3-phase power connection, due to its high performance operation.
  • (this pre-owned model is push-button operation only - foot-pedal is not included with this machine).

Citoborma 490 Specification:

  • Paper width maximum - 460mm.
  • Throat depth - 270mm.
  • Drill bit length adjustment within seconds.
  • Drill diameters from 2 – 35mm.
  • Pile height maximum - 60mm.
  • Fixing of the heads position with a single screw.
  • Quick drill bit replacement.
  • Solid standard heads made from cast iron.
  • Hand-wheel operated back-stop with millimetre scale for quick setup (guided by a twin spindle).
  • Table lift adjustment via hand-wheel at front of the machine.
  • Programme-stops to do any type of hole-pattern (stop-bars are interchangeable by a quick release).
  • Optimum safety due to two-hand operation, reversible and safety cover.
  • Receding safety covers for efficient production.


ModelCitoborma 490
Including VAT (20%)£6,588.00
